Find Your High qualified Lifting soulutions / lifting plans / lifting supplier provider

Why Choose Us?

Our Full Qualified Engineers conduct Periodic & Thorough Inspections of various industrial equipment including :

1. Inspection of Powered Lifting Equipment:These cover a wide range of equipment used for lifting load either vertically or horizontally or both and mean any stationary or mobile equipment including attachments for anchoring, ﬁxing or supporting that Equipment, which is operated by means of motive power e.g. electric, hydraulic or pneumatic or other powered means.

Examples:
• Mobile crane / crawler crane
• Overhead crane
• Tower crane
• Lorry loaders
• Pick & Carry Cranes
• Oshore cranes |
• Deck cranes
• Slewing Jib cranes
• Forklift trucks
• Manlifts (MEWP)

• Suspended Access Equipments (Cradle)
• Construction Hoists (Passenger / Goods Hoists)
• Vehicle Lifts
• Monorail beam with hoist
• Traction Hoists

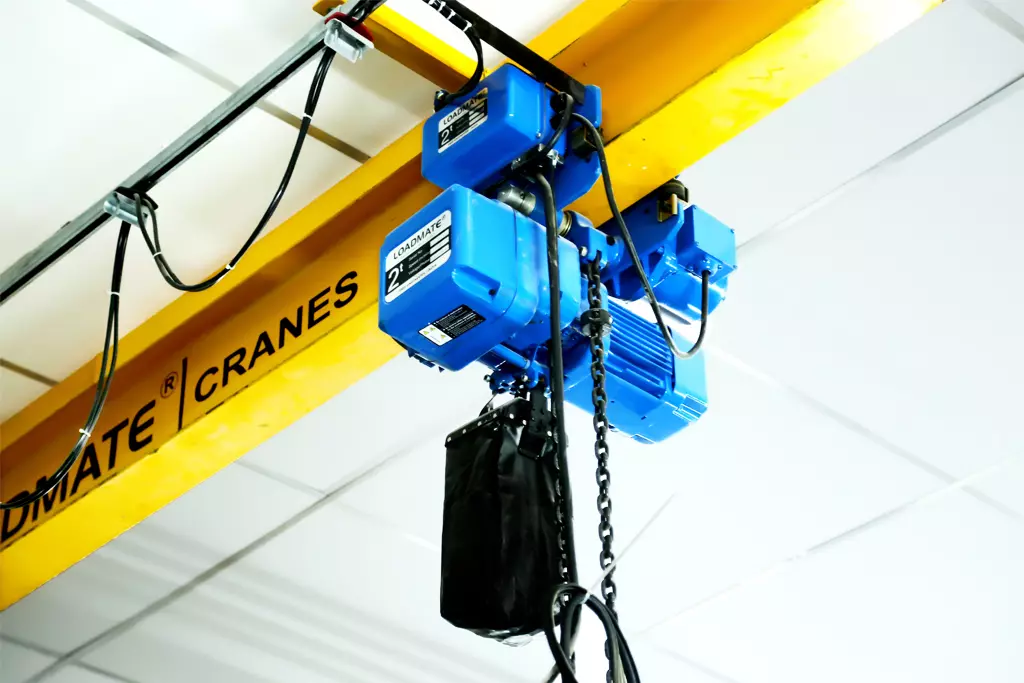

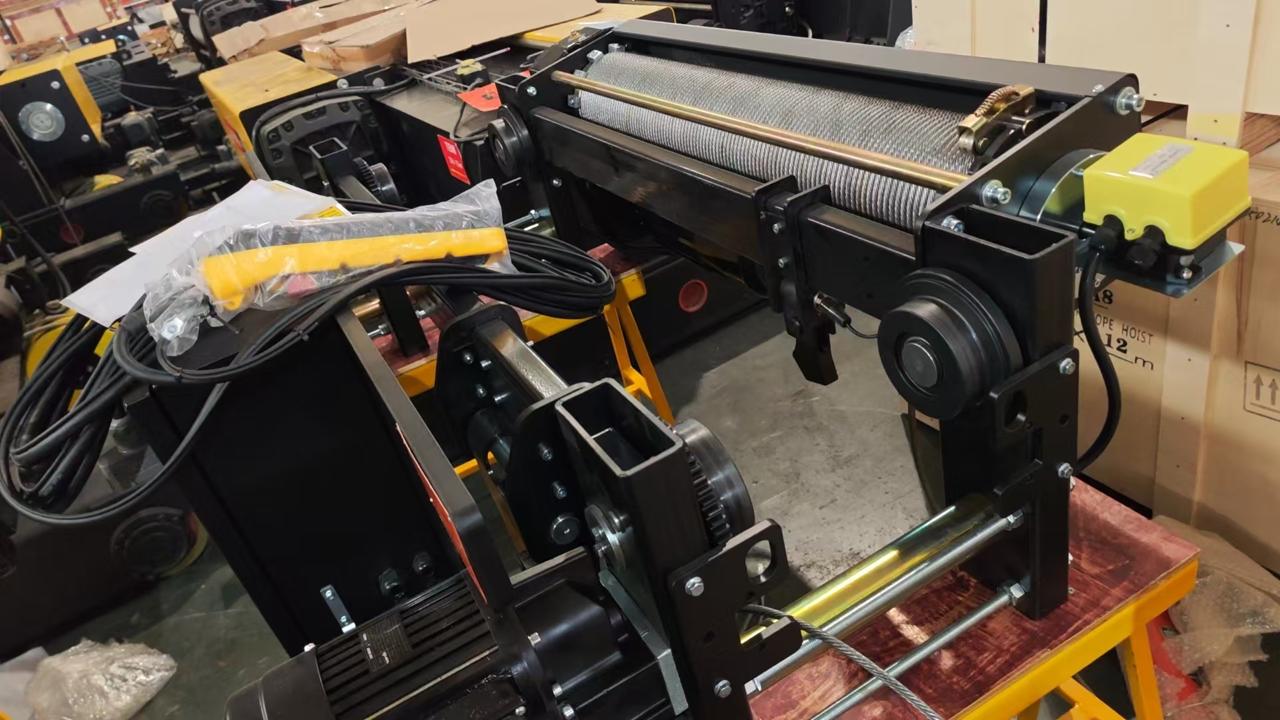

• Electric hoists
• Dock levelers
• Concrete placing boom
• Concrete pumps
• Winches
• Air compressors

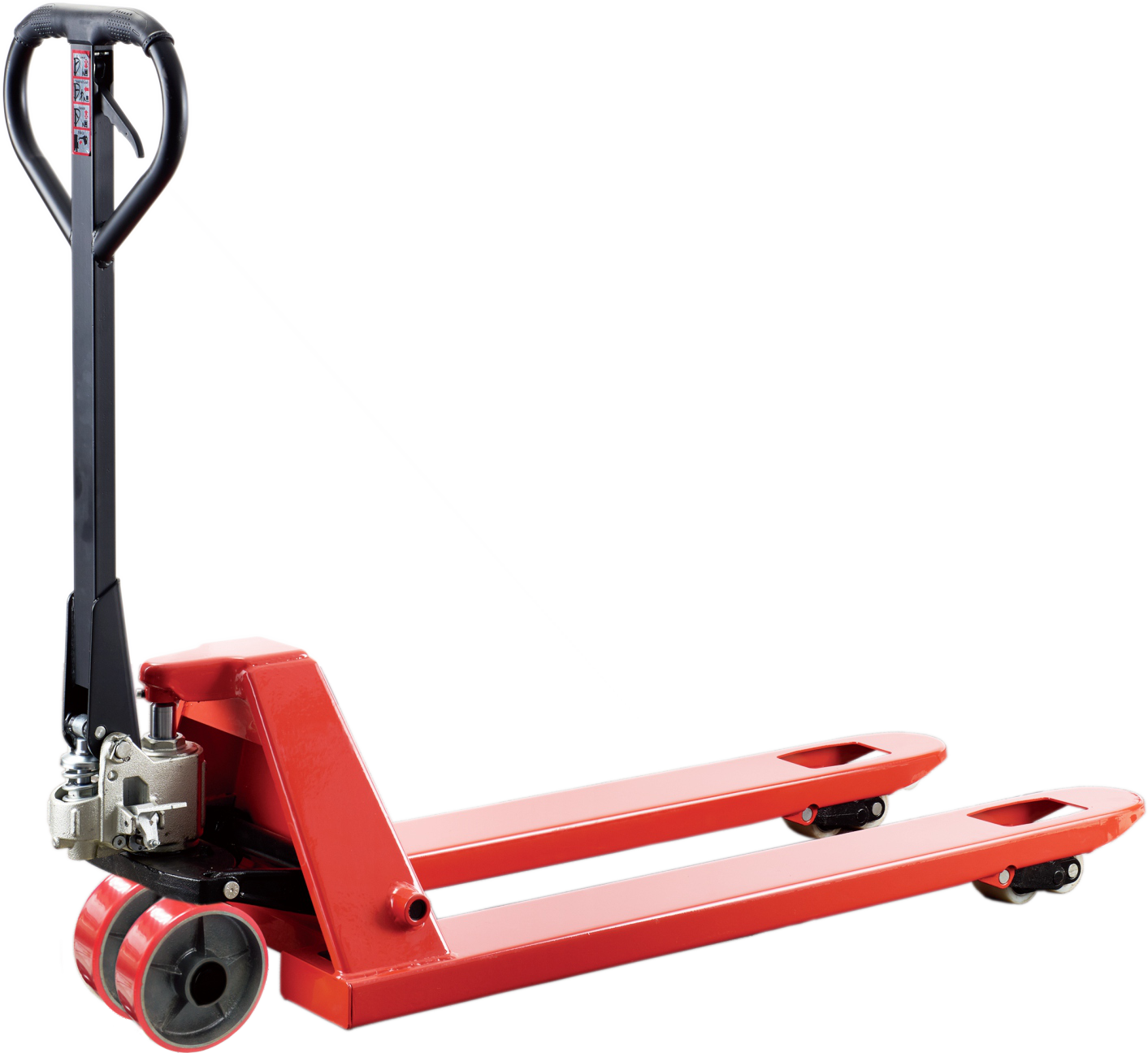

• Pallet stackers
• Material lifters

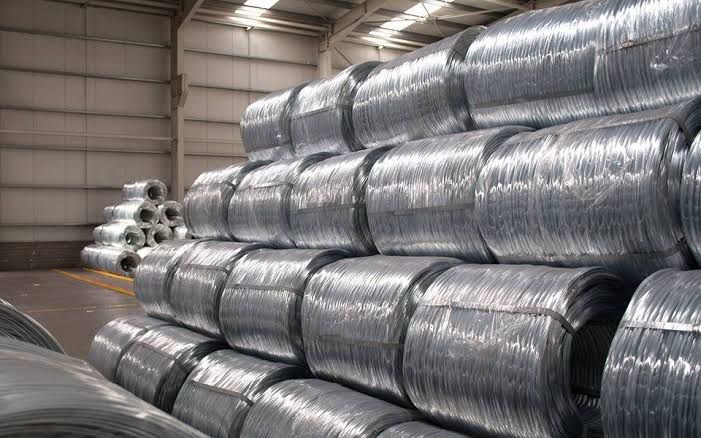

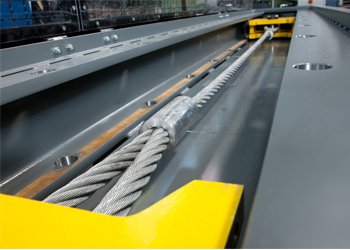

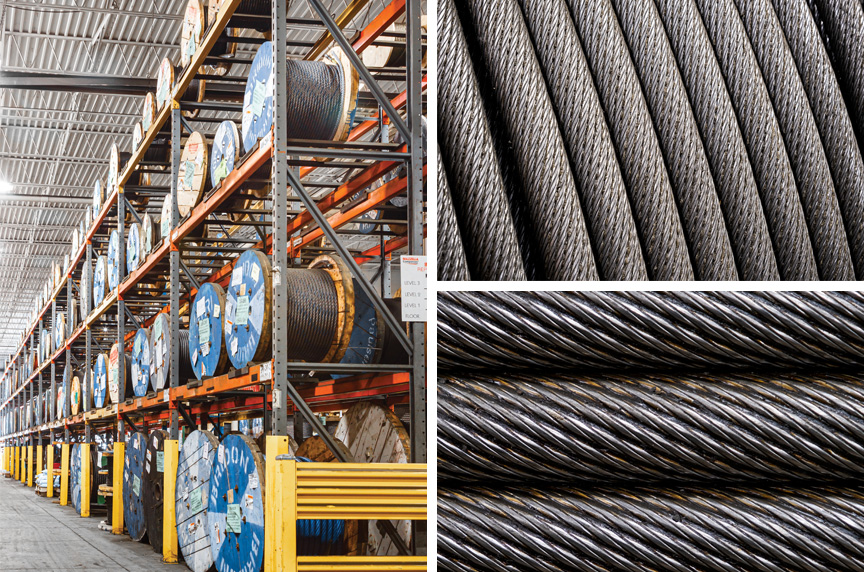

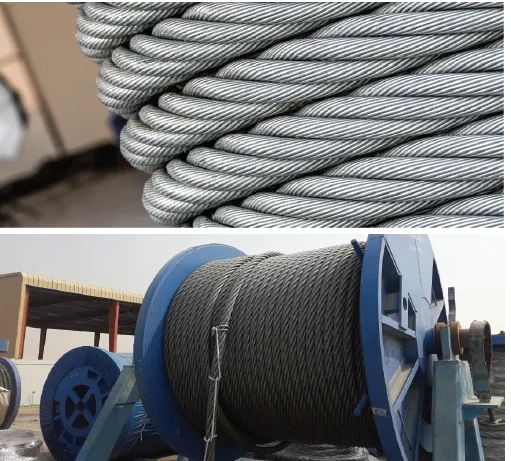

STEEL WIRE ROPE

our company maintains a large stock of wire rope for various applications. Our high quality wire ropes are sourced from Europe, , Germany , Korea, India and UAE.
All ropes conform to the relevant International norms and are supplied with Mill Test Certificates

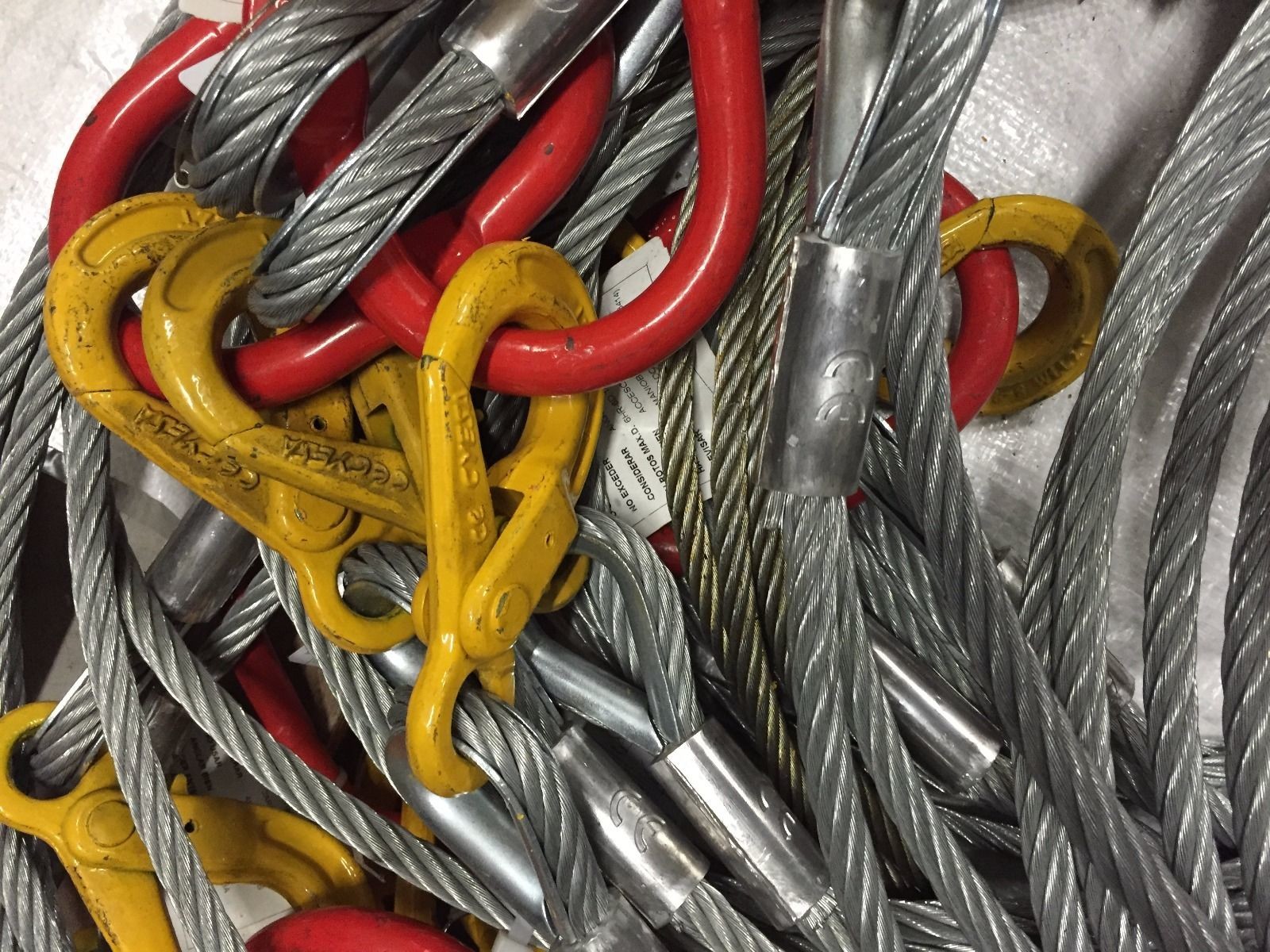

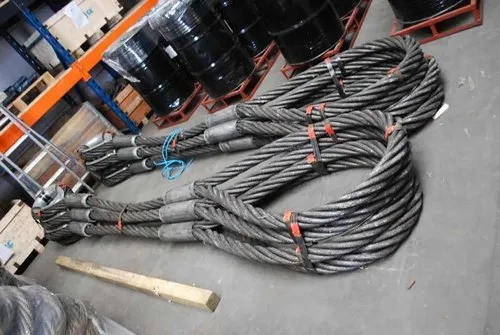

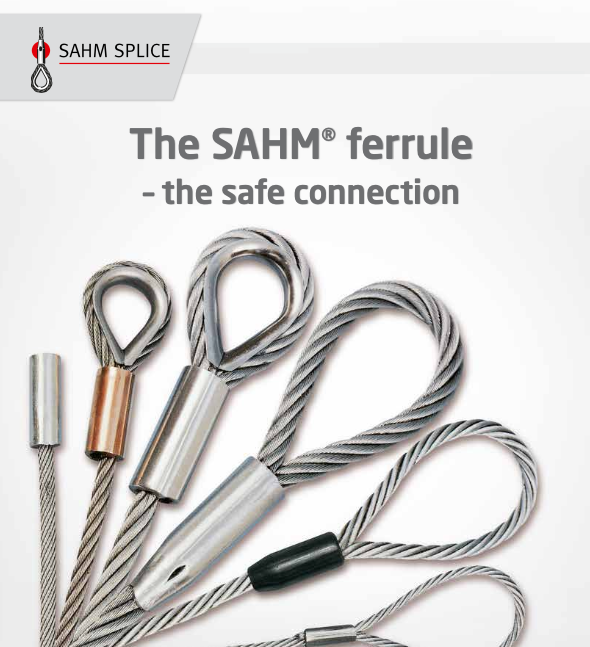

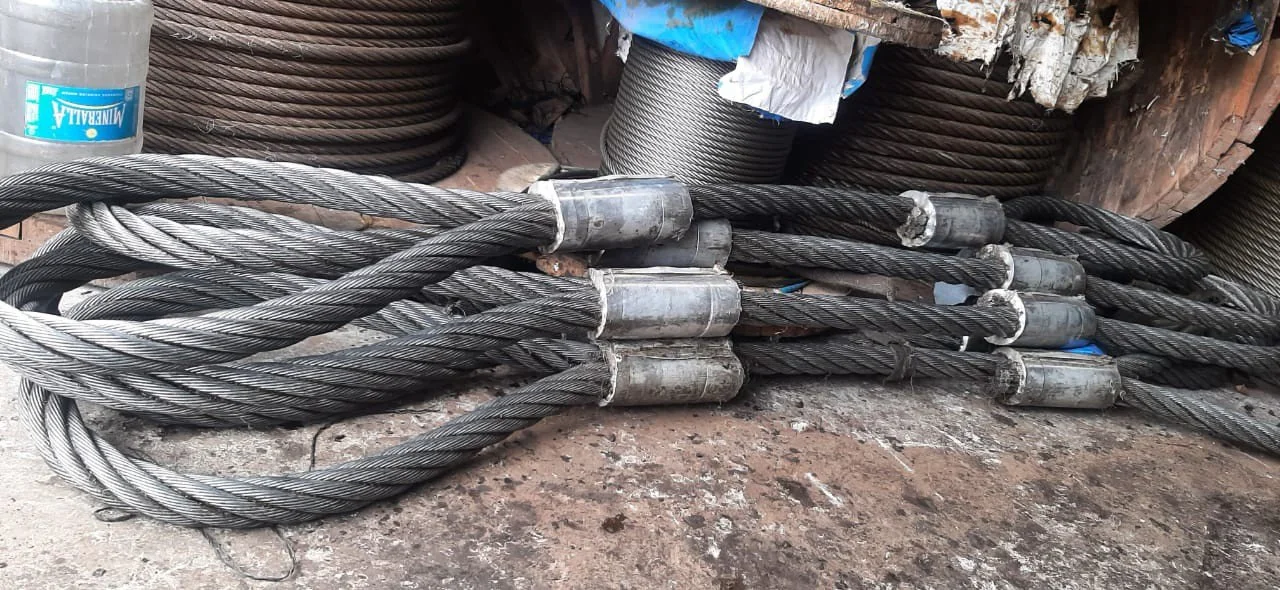

STEEL WIRE ROPE SLINGS FEATURES

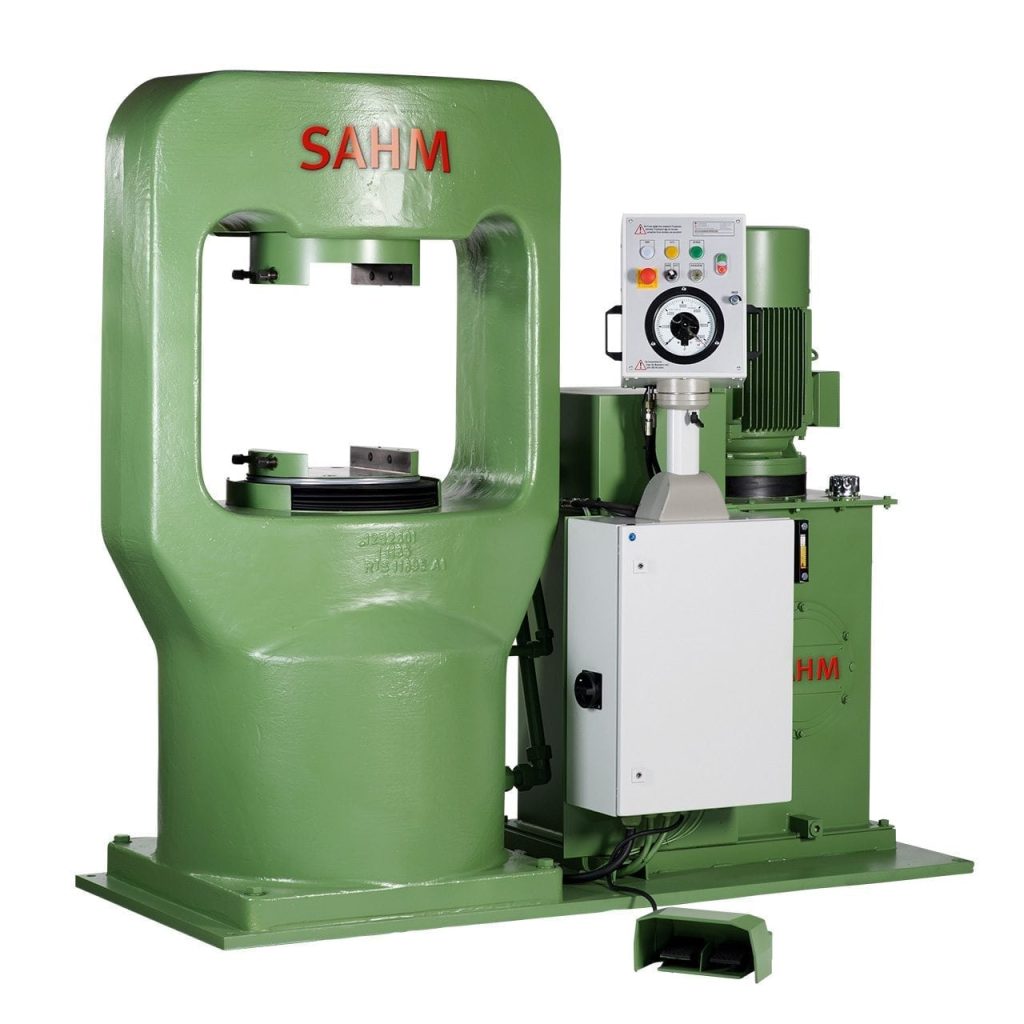

One of the most comprehensive rigging in the Middle East . Fabrication of slings upto 4 Inch ( 103mm ) diameter With Steel ( Flemish ) and Aluminum Sleeves Slings manufactured to EN 13414-1 Stockist from Green Pin, Excel , Crosby, Yoke, Rope Block , Wirop, Brunton Wolf , Hitchhictoor

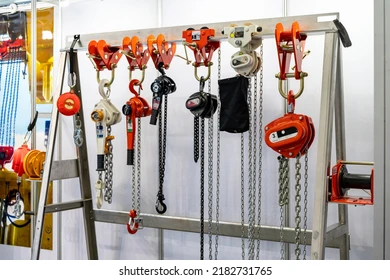

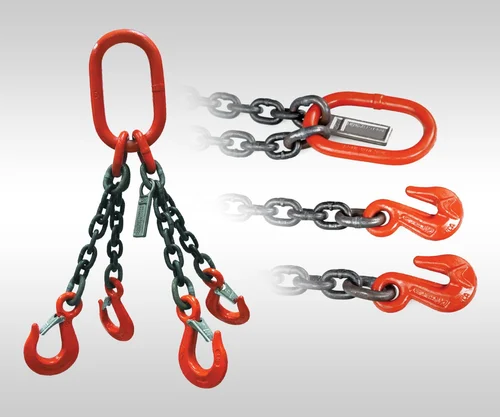

Lifting chains and accessories

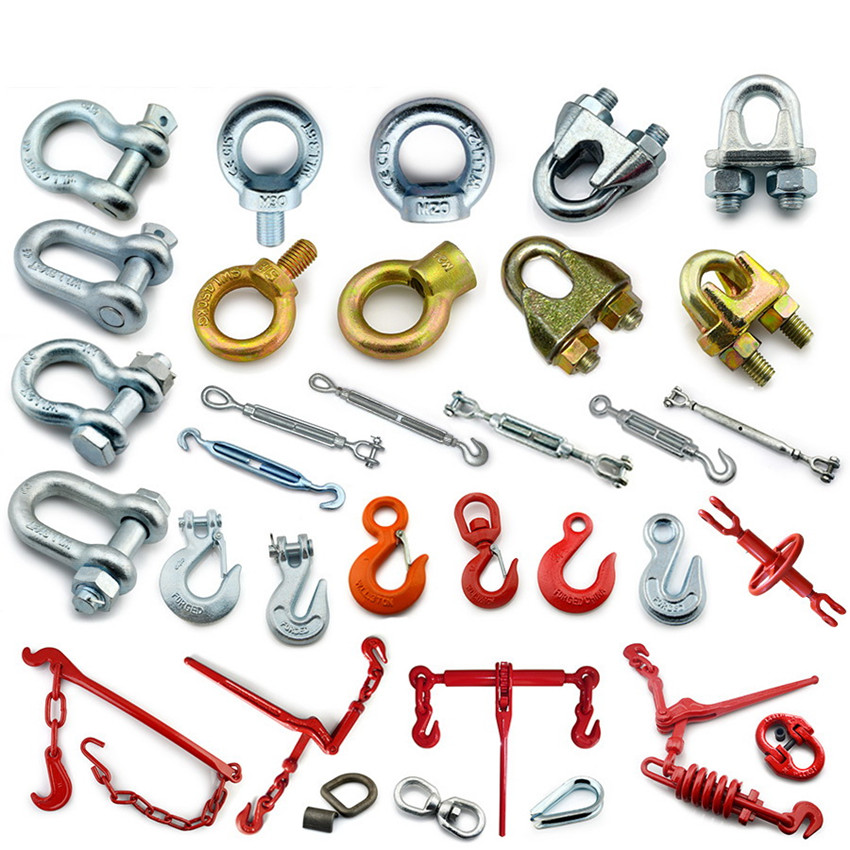

CHAIN SLINGS & GRADE 80 FITTINGS • More than 250 tons of Grade 100 & Grade 80 Chain in stock .• Upto 32mm lifting chain in stock .• Chains manfactured to EN 818-1 and Chain Slings to EN 818-4 • Fittings from Van Beest - Green pin - Crosby - Hitchhictoor - Gunnbeo - Yoke

Installing

Installing : Installing services available in many cases. • Installing offshore burner boom and king post. • Installing rig cooling system. Engineering Repair & Modifications : This Services are available to be carried out on client base/field, as well as in our base in kish. • Repairing the Offshore Containers (Cargo, Office, Workshop) • Performing Modification on Offshore Containers. • Repair and Modification on Offshore Vessels. • Repair and Modification on Pressure Vessels. • Reinforcement, for offshore/onshore infra-structure. • On-Site Welding Services. • Sand Blasting & Painting.

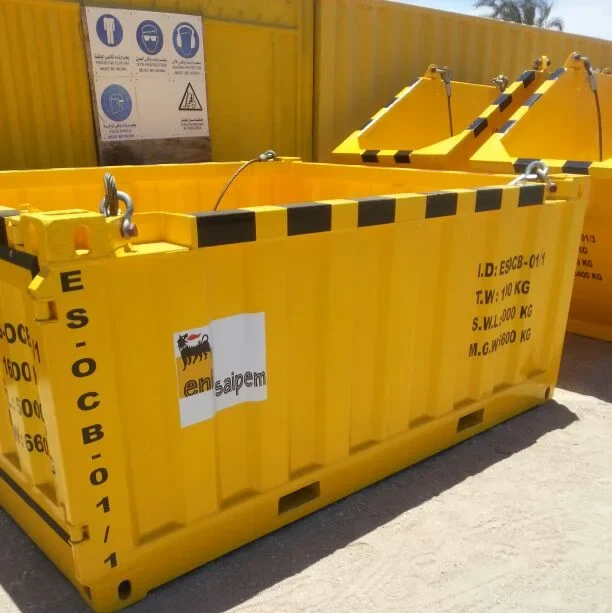

Drum Baskets & Carriers

Drum Baskets & Carriers British Lifting Offshore Drum Baskets have been designed and manufactured in accordance with DNV2.7-1 / BSEN 12079. The units are supplied with certified slings and shackles as standard. All units are stackable where deck space or yard space is at a premium. British Lifting Offshore Drum Baskets are provided with full width side door access. The base has integrated forklift pockets for ease of yard loading and offloading. British Lifting Cargo Baskets are supplied with internal tie down points through out the interior provide strong points to secure cargo.

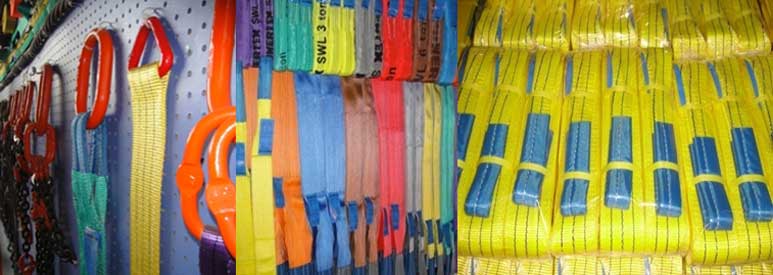

Features of ribbon and cylindrical ropes

WEBBING AND ROUND SLINGS FEATURES Manufactured EN 1492-1 & ASME B30.9 ( Flat Slings ) & EN 1492-2 ( Round Slings ) . Highly customizable depending on client requirements . SWL from 500kg to 150 tons, EWL from 50cm to 100 mtrs . ISO 9001 certified production process with stringent quality control procedures . Large stock ready to be delivered within short delivery time

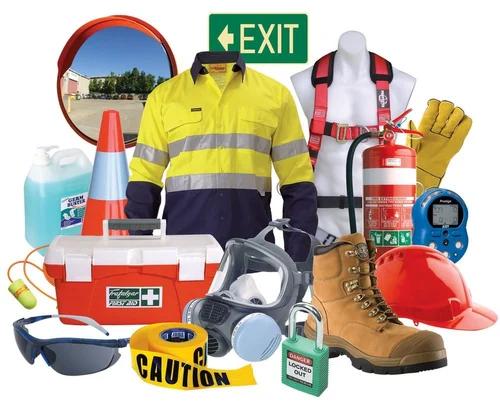

Delta Plus

DELTA PLUS - FALL AND PROTECTION SAFTEY HARNESS AND ACCESSORIES For all lifting applications, including Marine & offshore • 1-2-3-4 Points body saftey harnesses . • Rescue and suspension saftey harnesses . • All types of self retractable fall arrester & rope grabs . • Fully traceable calibration certificate • Energy absorbing lanyards • Anchorage accesories .

Clay containers and waste containers

Suretank Mud Skips and Waste Skips are used for the transport and disposal of drill cuttings in the offshore Oil & Gas industry. Mud Skip containers are designed and manufactured to the DNV 2.7-1 and ISO 10855 standards. Mud Skips are designed and tested withstand a vacuum of -0.5atm. Standard capacities are 3.6m3 (11T Max Gross) and 2.8m3 (6T Max Gross) and any other capacity can be manufactured, if required. Units are available with steel lids, aluminium lids or both and are available with NPT, BSP, flange and camlock fittings. Other required fittings can also be accommodated. Suretank also manufactures skips for the transport and disposal of general waste. Standard capacities are 6m3 and 8m3, but any other capacity can be manufactured as required. Waste skips are also available lidded, if required. Our Offshore Mud Skips and Waste Skips are shot blasted and painted with 3-coat offshore paint system as standard (285 microns NDFT), customer specific painting can be included on request

Jib Crane

Jib cranes can be fitted in low headroom or standard headroom configurations, either with a chain or using wire rope hoists. These cranes are widely popular for their high precision in manual or controlled wheeled movement. To ensure continued 360° movement, Misr for Engineering Works has manufactured and patented its very own jib crane design, allowing it to complete 360° motions repeatedly and successfully

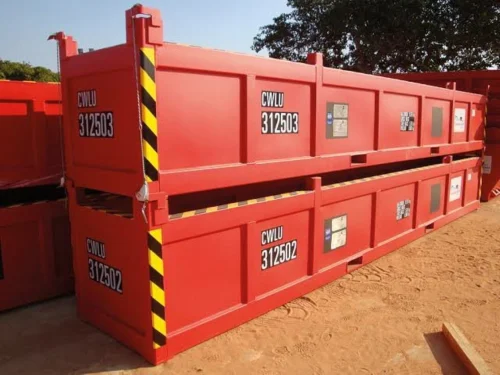

OFFSHORE CARGO CONTAINERS

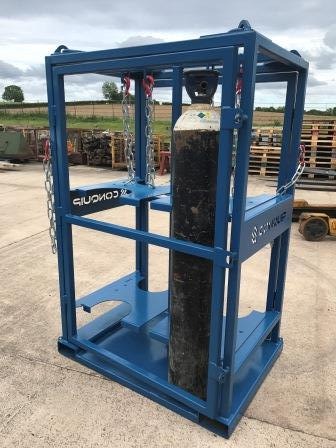

OFFSHORE CARGO CONTAINERS We manufacture different types of offshore/onshore containers, as per DNV 2.7-1/ EN12079 and DNV 2.7-3 Portable offshore Units: • Pressurized Office Containers. • Workshop Containers. • Offshore Cargo/Tools Baskets. • Drum Baskets. • Bottle Racks.

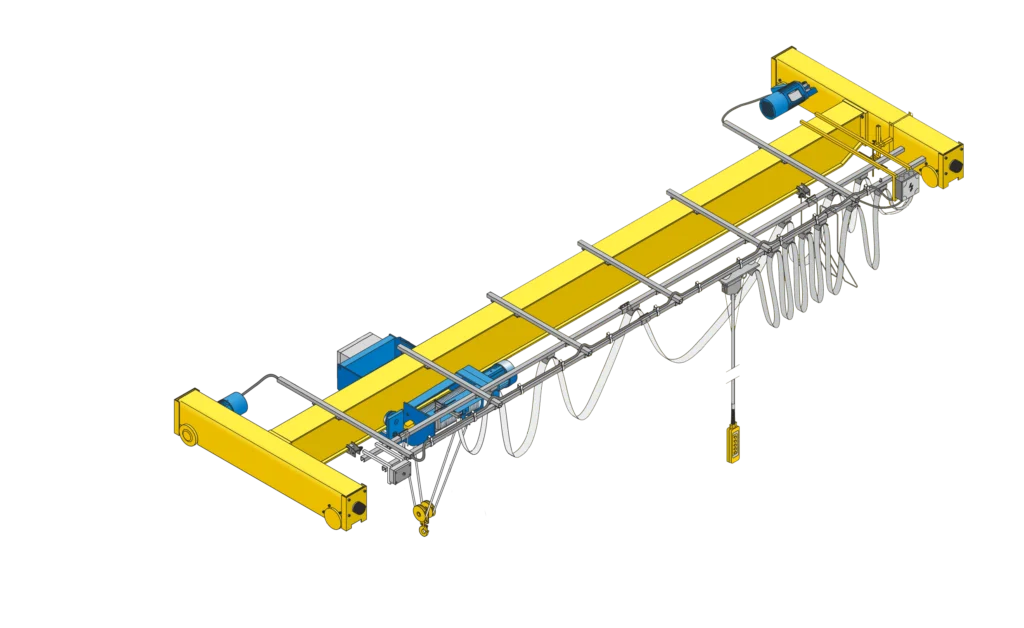

Overhead Crane Single Girder

The centralization of single girder cranes, together with the minimum weight, makes this configuration optimal for space use

Gantry Crane

Unlike Bridge cranes, Gantry cranes have legs and move on runways which are usually on floor level.These cranes are highly efficient to work outdoos, achieving high speeds and capacities.(also referred to as Portal Cranes and Goliath Cranes). Can also be designed as one side of the crane runs on elevated runway, while the runway for the other side is on ground level, in this case its is referred to as Semi-Gantry crane.

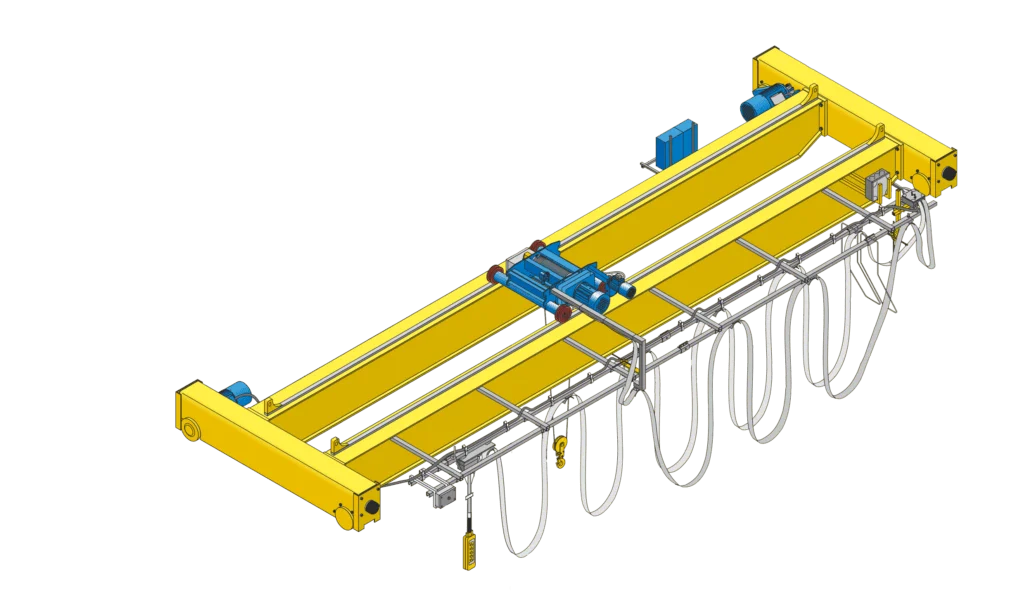

Overhead Crane Double Girder

Thanks to the measurement technique employed, the double girder design has an optimized weight, reducing its loads on the structure, and improving stability when holding a higher load.

Monorail

When built correctly in the factory layout, this kind of overhead lifting system is very efficient and highly reliable. The monorail only provides two directions of hook travel: Up Down And along the axis of the monorail beam
